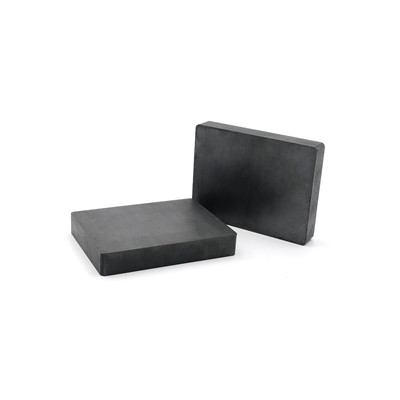

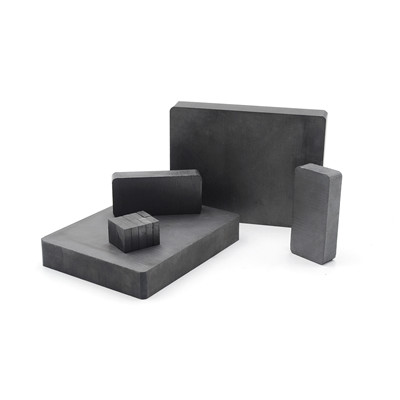

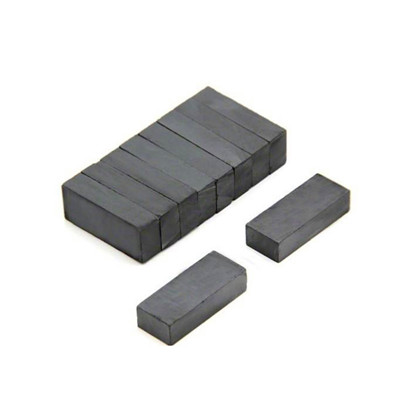

Powerful Ferrite Bar Ferrite Block Magnet

Ferrite Magnet

There are mainly two types of ferrite magnets, Barium Ferrite (BaO.6Fe2O3) and Strontium Ferrite (SrO.6Fe2O3).

Ferrite magnets can be wet pressed or dry pressed.

Wet pressing yields better magnetic properties, but poorer physical tolerances. Generally, the powder is dry for grade 1 or 5 materials, and wet for grade 8 and higher materials.

Ferrite permanent magnets have good machining properties which allows them to be cut into different shapes and sizes - they are cut with diamond tooling.

Compared with other permanent magnets, sintered ferrite magnet is cheap. It is most suitable for most sensitive, but need not very high performance applicaitons.

As this is a non-metal magnets, it is the ideal magnets for applications that require non-rusty magnets in humiture environment.

Sintered ferrite magnets are widely used in many different applications, such as motors, cars, magnetic selection loudspeakers, and many special applications.

Summary Of Permanent Ferrite Magnet
